- Filtration Efficiency: 60% to 95% (MERV 9–14 / EN779 M5 to F9)
- Particle Size Removal: 1 – 10 Microns
- Recommended Final Pressure Drop: 250 Pa (varies by grade)
- Filter Media: Synthetic Fiber / Glass Fiber / Nano-blend Media

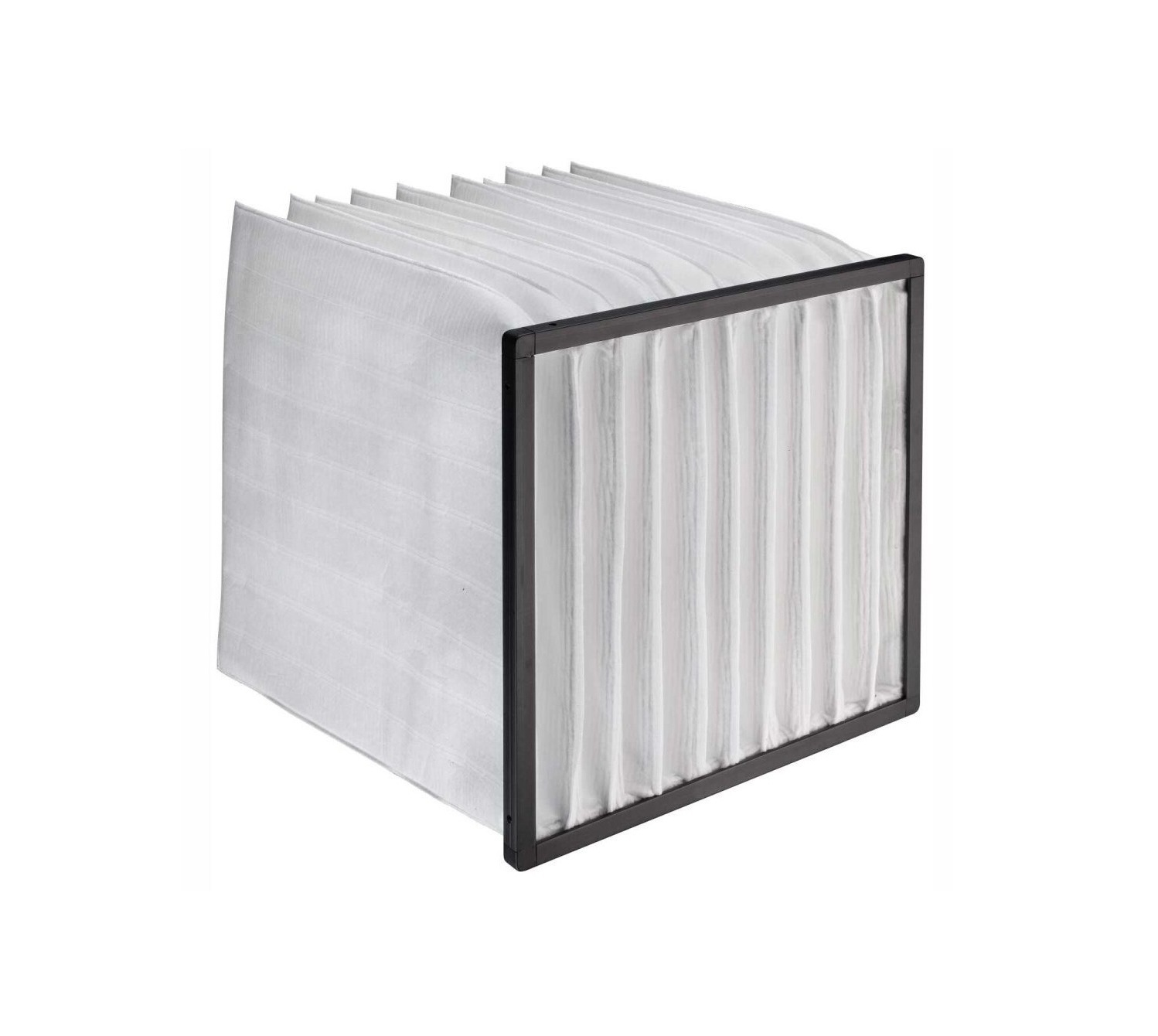

Fine Filters
At our facility, we design and supply premium Fine Filters for precise air filtration in commercial, industrial, and cleanroom environments. These filters effectively trap medium to fine airborne particles such as dust, smoke, and bacteria, ensuring cleaner, healthier, and safer air quality.
What We Offer
Features
Fine Particle Filtration
Effectively captures airborne particles such as dust, smoke, and micro-pollutants down to 1 micron in size.
Enhanced Indoor Air Quality
Ideal for HVAC systems in offices, hospitals, and cleanrooms where high air purity is essential.
Robust Build Quality
Manufactured with high-grade media and frames to ensure long service life and minimal maintenance.
Universal Compatibility
Fits easily into standard air handling units and custom HVAC configurations.
Specifications
Filtration Performance
Power & Operating Parameters
- Operating Temperature: -20°C to 65°C
- Humidity Tolerance: Up to 100% RH (non-condensing)
- Suitable for Non-powered and Passive Air Handling Units
- Recommended Airflow: 500 – 2500 CFM
Dimensions & Build
- Standard Sizes: 610x610 mm, 595x595 mm, and custom options
- Frame Material: GI, Aluminum, Plastic
- Depth Options: 25 mm / 50 mm / 100 mm
- Construction: Rigid pleated / Bag filter types
Additional Information
- Applications: HVAC Systems, Pharmaceuticals, Food Processing, Cleanrooms
- Compliance Standards: ISO 16890 / EN 779 / ASHRAE 52.2
- Maintenance: Replace every 4–6 months depending on use
- Country of Origin: Made in India
