- Filtration Efficiency: Up to 80% (G3 to G4 Grades)
- Particle Size Removal: ≥10 Microns (Dust, Hair, Lint)
- Airflow Capacity: 600 – 3000 CFM (Model Dependent)
- Filter Media: Non-Woven Synthetic / Aluminum Mesh / Foam

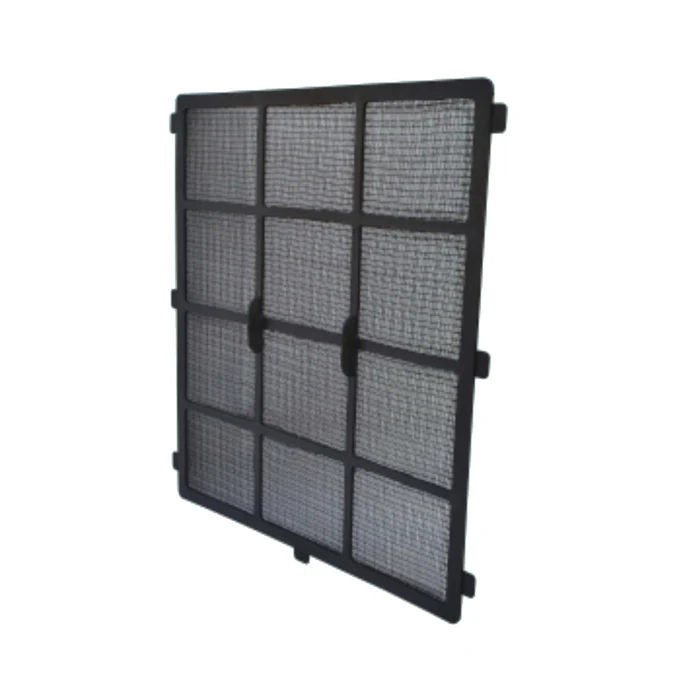

Pre Filters
At JSS air technology, we specialize in manufacturing and supplying high-performance pre filters engineered to capture large dust particles and contaminants in the initial stage of air filtration. These filters help extend the life of primary filters and protect sensitive equipment in various industrial, commercial, and HVAC systems.
What we serve
Features
Primary Dust Filtration
Effectively traps large particles like dust, lint, and debris before they reach fine or HEPA filters.
Enhances System Life
Acts as a protective layer for downstream filters, significantly extending their service life.
Robust Build
Constructed with rigid frames and synthetic media to withstand high dust loads in industrial settings.
Quick Integration
Pre filters are easy to install and fit seamlessly into HVAC and filtration systems of all sizes.
Specifications
Filtration Performance
Operating Parameters
- Operating Temperature Range: -20°C to 80°C
- Humidity Resistance: Up to 100% RH (non-condensing)
- Initial Pressure Drop: ≤ 100 Pa (at rated airflow)
- Max Final Pressure Drop: 250 Pa
Dimensions & Build
- Filter Sizes: Customizable (e.g., 610x610x50 mm, 595x595x25 mm)
- Frame Material: GI Sheet / Aluminum / Plastic
- Media Support: HDPE Mesh / Wire Mesh
- Weight: Varies by size and material
Additional Information
- Applications: HVAC Pre-Filtration, Industrial Air Handling Units, Paint Booths
- Standards Compliance: ISO 16890 / EN 779 (G3/G4 Class)
- Filter Replacement: Every 2–4 months or as per environment
- Origin: Made in India
